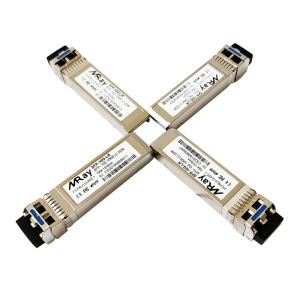

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

Name: Aruba Switch 10gb Sfp LC LR 20km J9151E 1310nm DFB Transmitter
Brand: Mray
Price: 1 USD

Wholesale Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter from china suppliers

Brand Name : Mray

Model Number : SFP-10G-LR20

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/day

Delivery Time : 1~2 days for samples

Packaging Details : 10pcs/plastic try, 500pcs per standard export carton

Product name : HPE Aruba Compatible 10G SFP+ LC LR 20km SMF Transceiver - J9151E

Data Rate : 10Gbps

Distance : 20km

Power Supply : +3.3V

Application : FTTH FTTB FTTO Network

Operating temperature : -40℃ to +85℃

Connector type : LC/UPC

Warranty : 3 Years

Contact Now

HPE Aruba Compatible 10G SFP+ LC LR 20km SMF Transceiver - J9151E

Description

This Miray SFP+ LR transceiver is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps.

Features

Operating data rate up to 10.3Gbps
1310nm DFB Transmitter
Distance up to 10km
Single 3. 3V Power supply and TTL Logic Interface
Duplex LC Connector Interface, Hot Pluggable
Compliant with MSA SFP+ Specification SFF-8431
Compliant with 10G 1200-M5-SN-I and 1200-M6-SN-I FC standard
Compliant with 8.5G 800-M5-SN-I and 800-M6-SN-I FC standard
Compliant with IEEE 802.3ae 10GBASE-LR/LW
Operating Case Temperature Standard:-10°C~+70°C

Application

Data Networking
Optical Network

Interfaces/Ports
Interfaces/Ports Details: 1 x LC 10GBase-LR Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-LR
Miscellaneous
Compatibility: Aruba 8325 Switch Series

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min	Typ	Max	Note	Unit
Optical Transmitter Characteristics
Nominal Wavelength	λ		1310			nm
Optical Output Power	Pav	-6		2		dBm
Extinction Ratio	ER	3.5				dB
Average Launch Power of OFF Transmitter	POFF			-35		dBm
Relative Intensity Noise	RIN			-128		dB/Hz
Optical Receiver Characteristics
Center Wavelength	λC	1260		1620		nm
Receiver Sensitivity@10.3Gb/s	RSENSE			-14.4	1	dBm
Receiver Overload		0.5				dBm
Optical Return Loss		27		-		dB
LOS Assert	LOSA	-30				dBm
LOS De-Assert LOS	LOSD			-17		dBm
LOS Hysteresis		0.5				dB

Dimension

Product Packing

Compatibility Test

Aruba Switch 10gb Sfp+ LC LR 20km J9151E 1310nm DFB Transmitter

Compatible Brands

Production Flow

For more details, welcome to inquire us freely.
